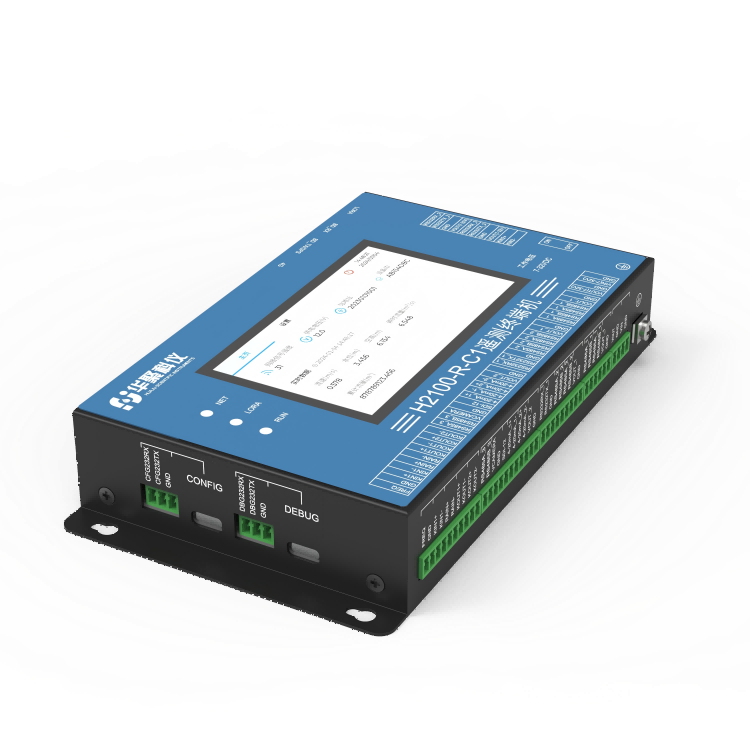

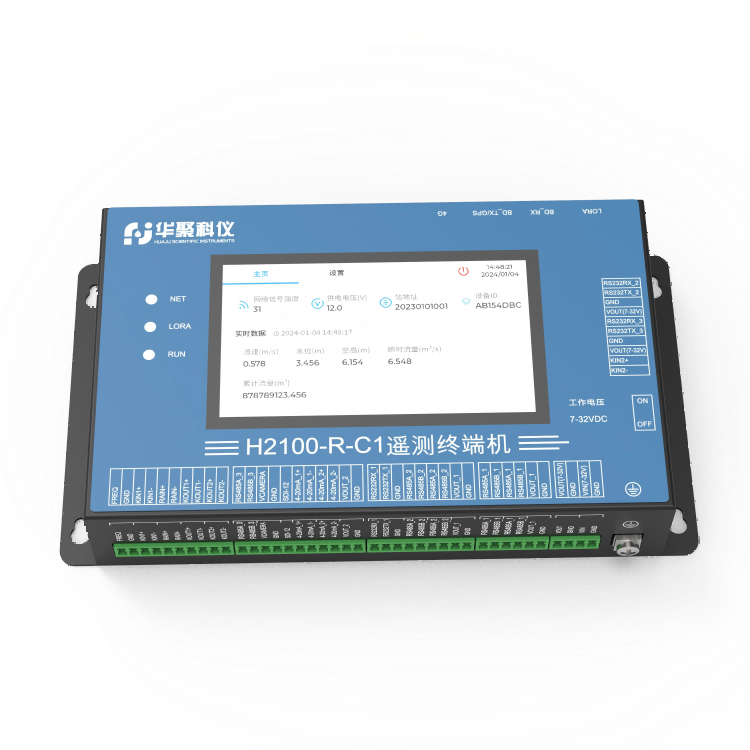

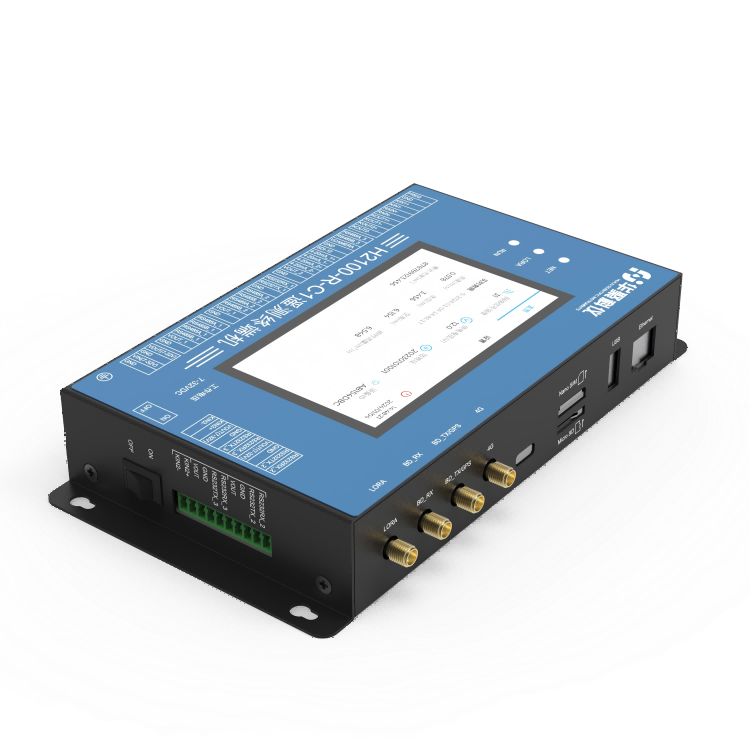

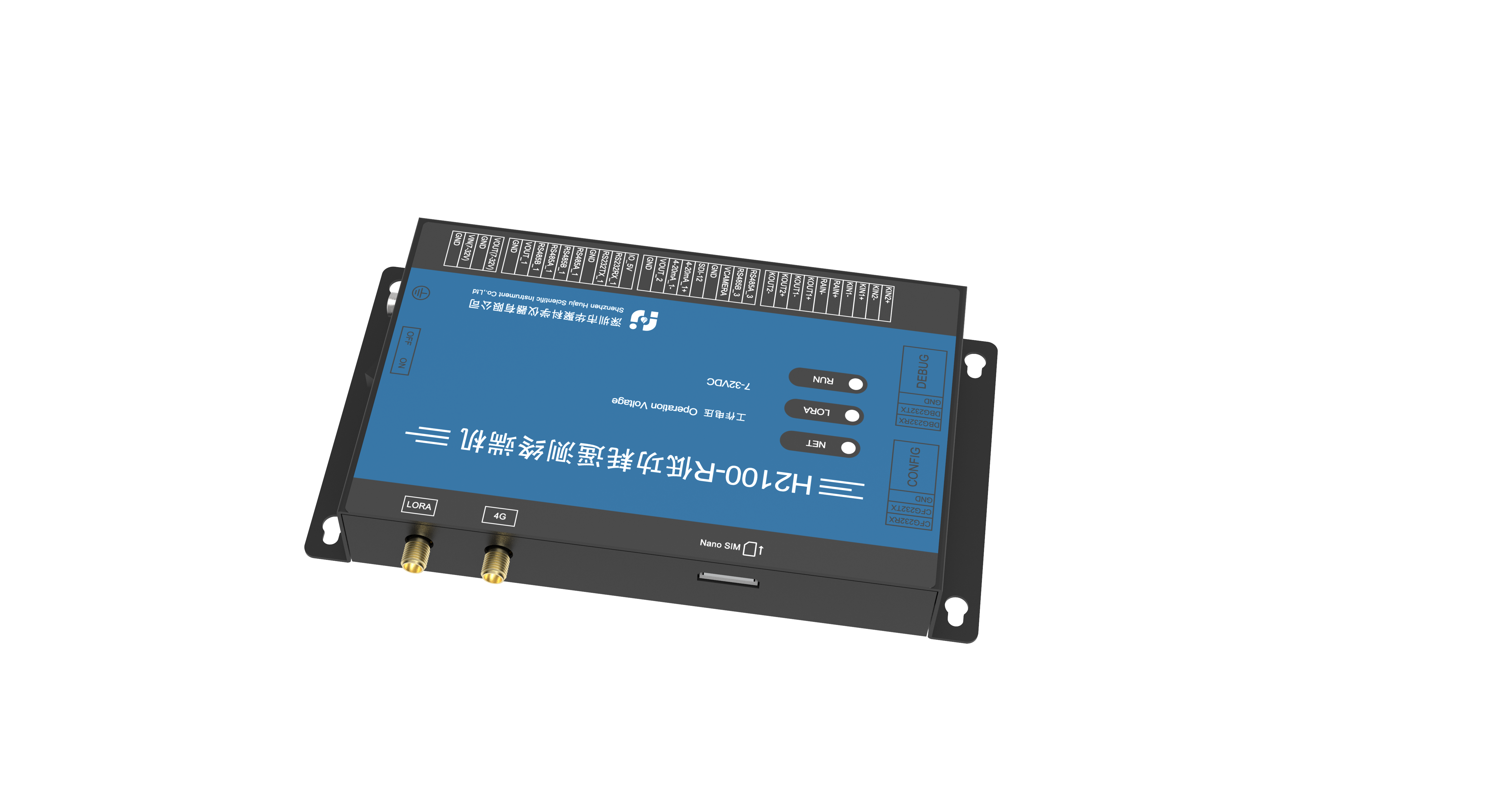

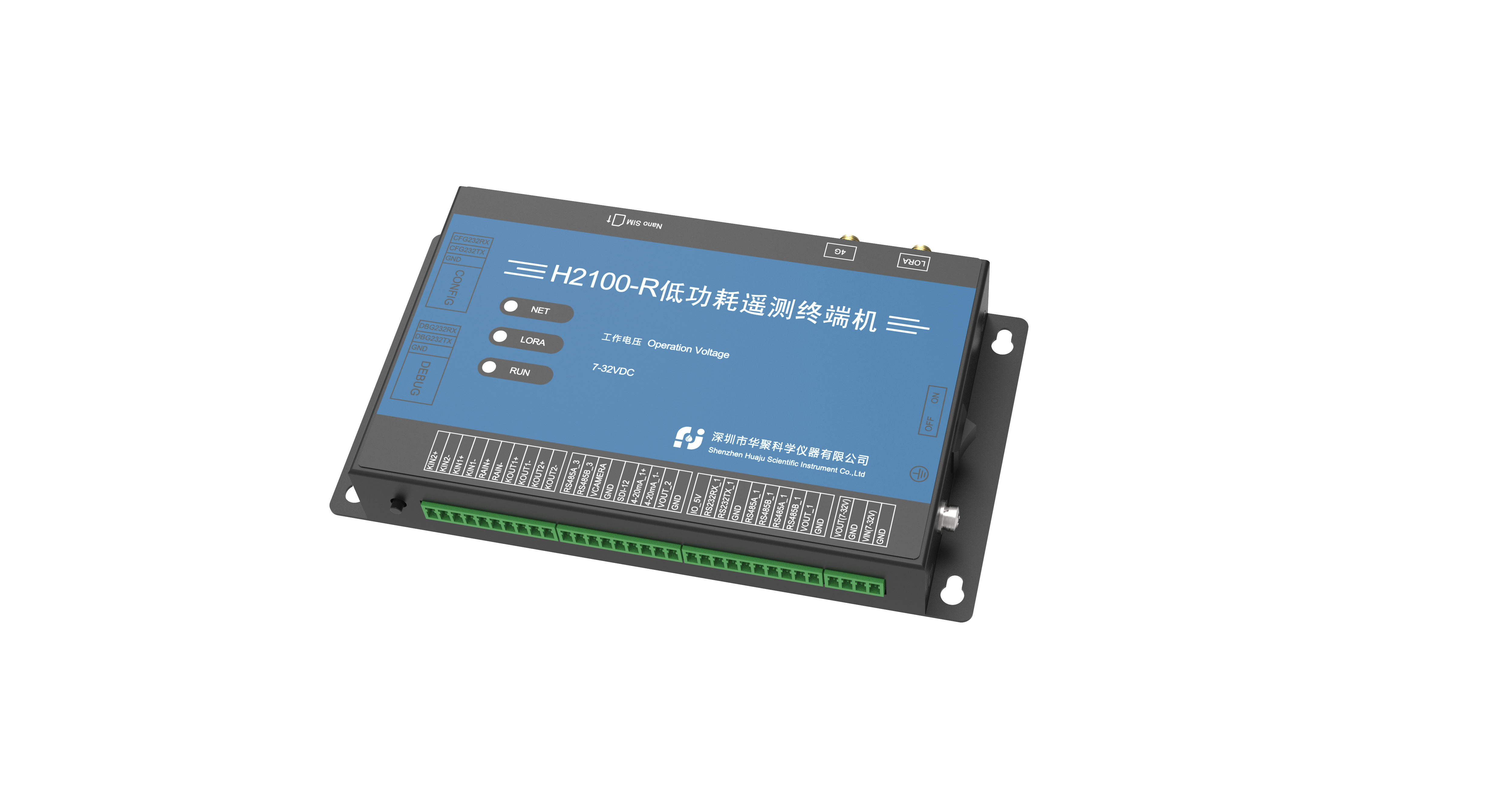

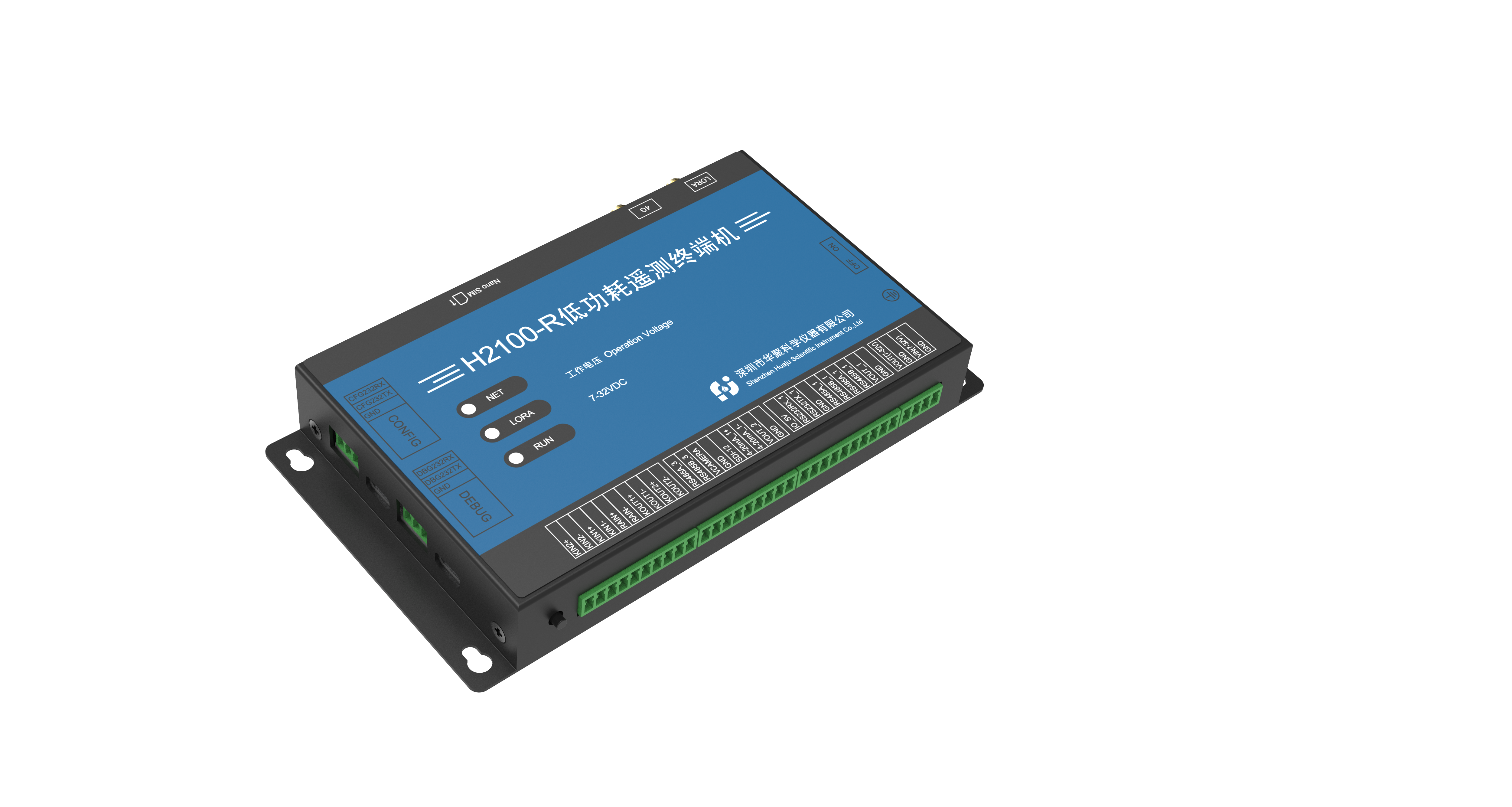

H-2100 Series Low-Power Intelligent Telemetry Terminal Unit
The H-2100 Series product is an ultra-low power, compact, and lightweight intelligent telemetry terminal unit. It can collect data from external sensors via RS485, RS232, 4-20mA, Lora, and digital inputs, and supports connecting multiple Modbus sensors through RS485. The collected data can be uploaded to a network server via 4G, NB-IOT, or Cat-1. Parameters can be configured on-site using a mobile Bluetooth app.

Dimensions:198mm*110mm*34mm
Power supply voltage:7-32VDC
LCD touch screen
Material Download
Product Introduction Product Features Technical Parameters Application Fields Application Scenarios
Product Introduction
—

The H-2100 Series product is an ultra-low power, compact, and lightweight intelligent telemetry terminal unit. It can collect data from external sensors via RS485, RS232, 4-20mA, Lora, and digital inputs, and supports connecting multiple Modbus sensors through RS485. The collected data can be uploaded to a network server via 4G, NB-IOT, or Cat-1. Parameters can be configured on-site using a mobile Bluetooth app.

The H2100 series telemetry terminal unit features a wide input voltage range and low standby current, making it particularly suitable for applications with stringent power consumption requirements, such as those powered by solar panels or disposable batteries.



Product Features
—
01
Wide voltage power supply range of 7-32VDC.
02
Supports Beidou short message communication.
03
Supports multi-channel reporting with one-to-many transmission.
04
Configurable TCP long connection and short connection modes.
05
Supports automatic network time synchronization and server time calibration.
06
Supports remote maintenance, upgrades, and data transparent transmission.
07
Supports Bluetooth for parameter configuration and data transparent transmission at close range.
08
Supports Bluetooth and RS232 for exporting historical data.
09
Supports switching between embedded SIM cards and pluggable SIM cards.
10
Compact size with customizable number of interfaces.
11
Optional 4G full Netcom, Cat-1 full Netcom, NB-IoT, and LoRa communication modules.
12
Supports SL651, SZY206, MQTT, HJ212, HTTP, and other custom protocols.

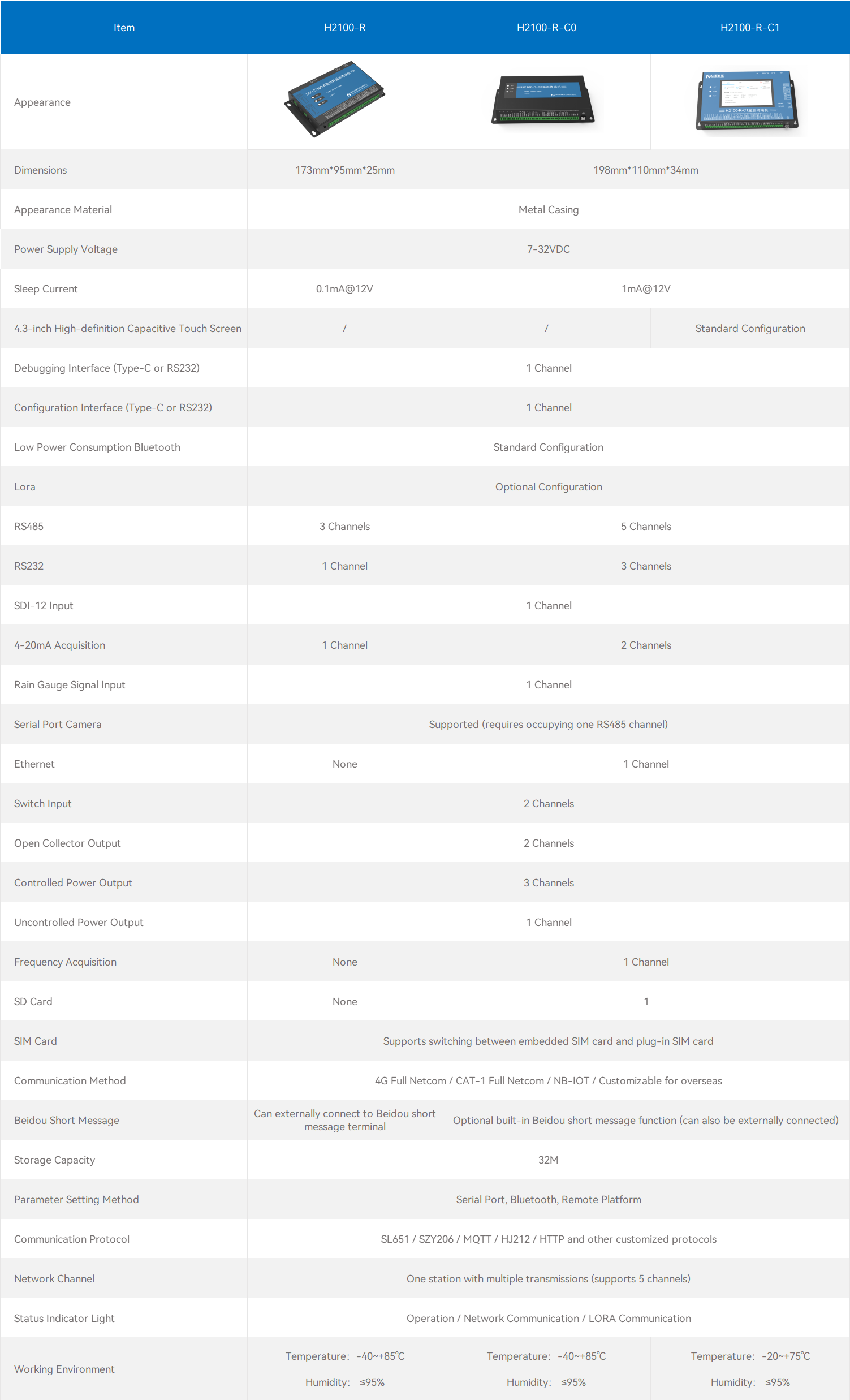

Technical Parameters
—

RTU

Application Fields
—
01
It can be widely applied in various fields involving IoT data collection, storage, communication, and remote control, such as water conservancy informatization, smart cities, water affairs, environmental protection, and chemical industries；
02
Examples include remote monitoring and control areas like hydrology, water resources, water environment, water pollution, mountain flood disasters, reservoir safety, and dam safety.
Application Scenarios
—

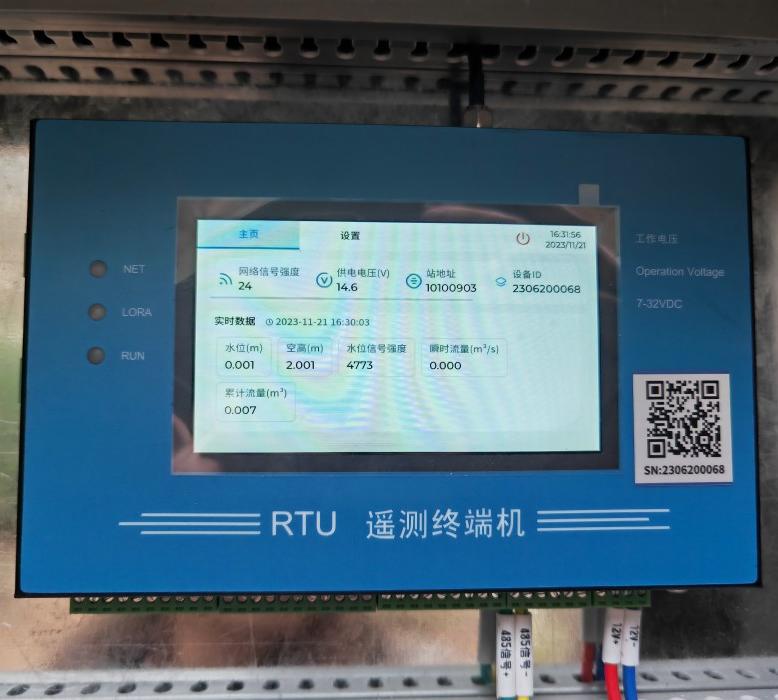

新疆现场 H2100-R-C0 4G+LORA+北斗卫星短报文，RTU接雨量桶、同时通过LORA接水位计，并用北斗三短报文和4G同时上报3

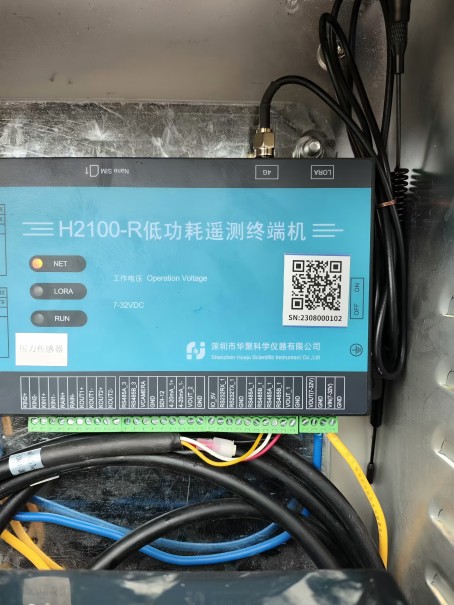

润腾嘉业 C1+RD300S 60G 巴歇尔槽静水井安装3(1)

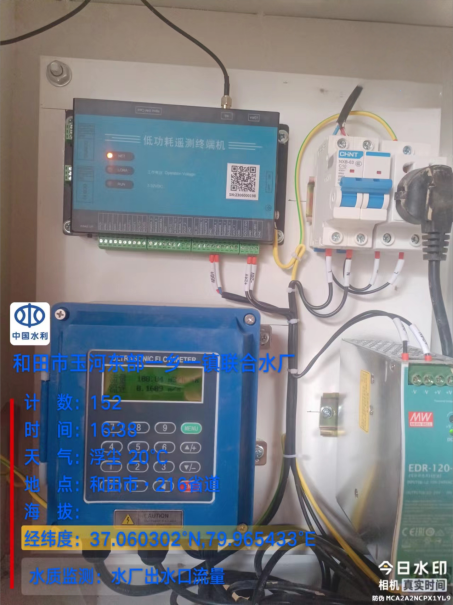

微信图片 应用场景尺寸 H2100-R尺寸

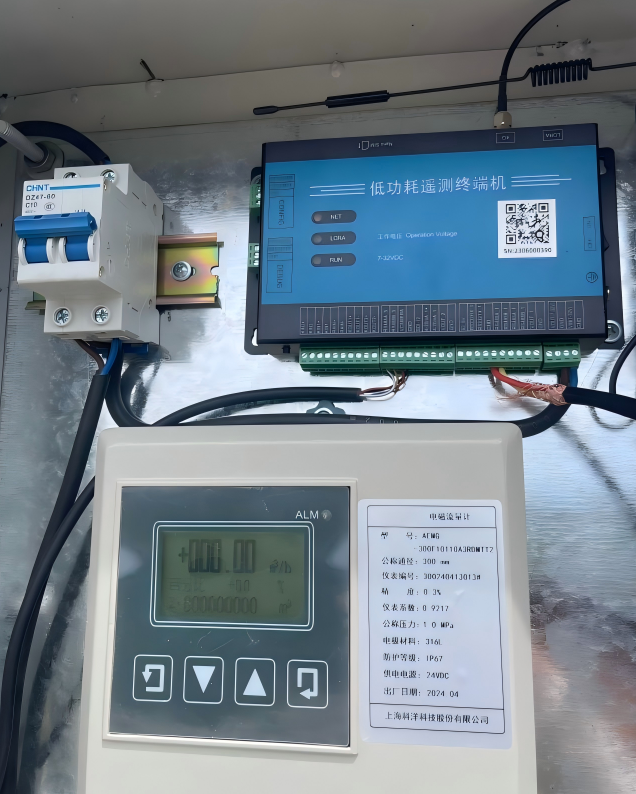

慧图 和田项目 H2100-R低功耗 外接大连科立德电磁流量计（1）(1)
微信图片_尺寸
