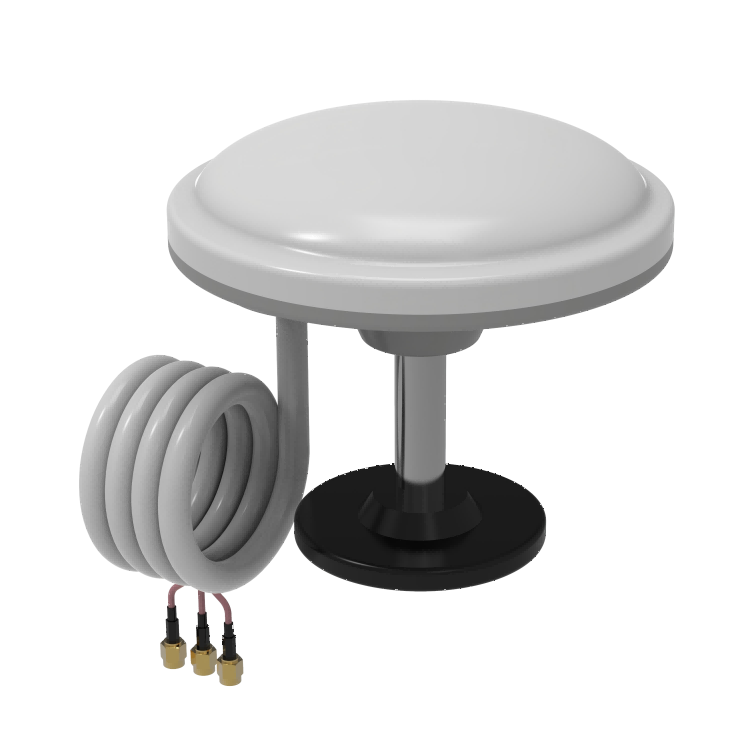

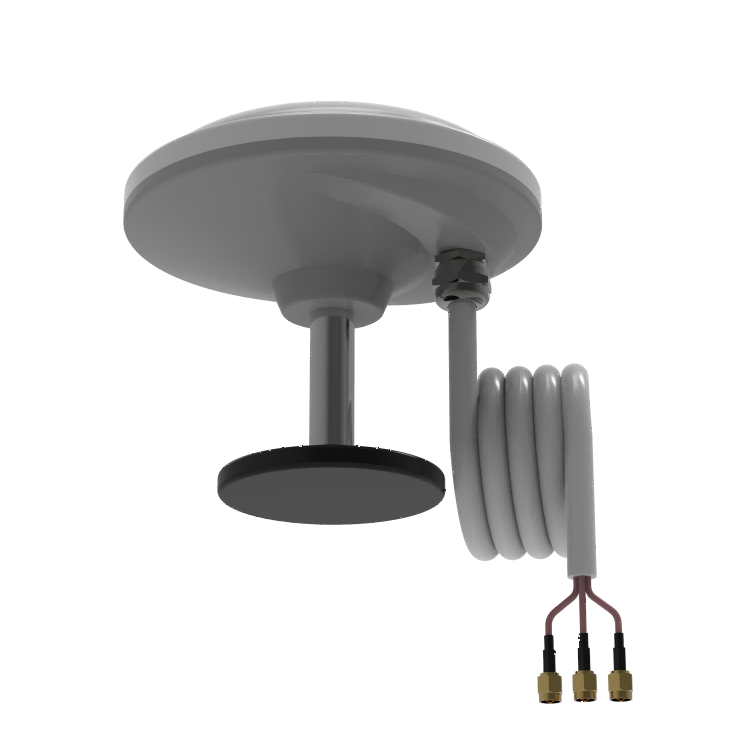

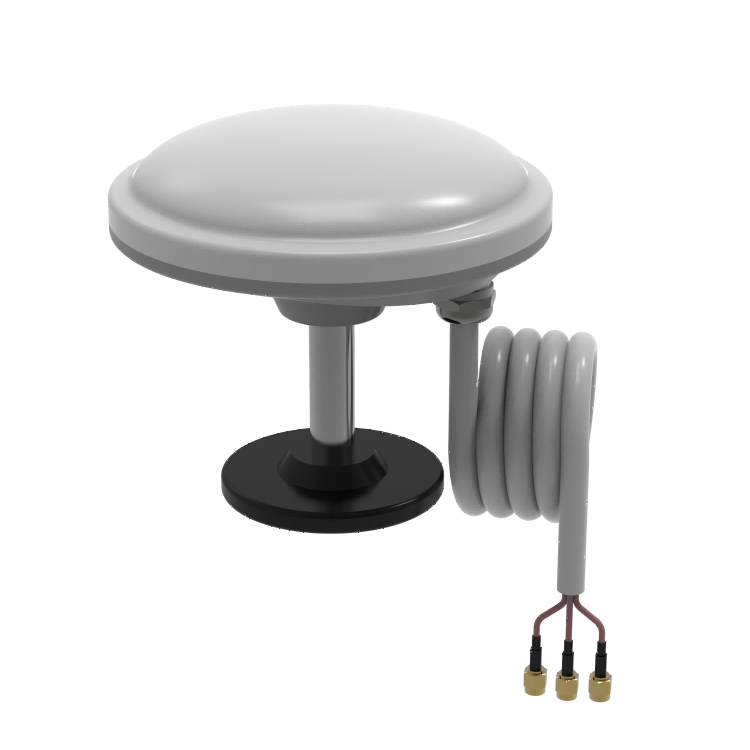

HRG-100 BeiDou Data Transmission Terminal
The HRG-100 Beidou Data Transmission Terminal is a data transmission device that supports Beidou-3 RDSS short message communication and GNSS positioning functionality. It integrates Beidou RDSS antenna, radio frequency, baseband, and main control units, enabling independent position reporting and Beidou short message communication capabilities.

Signal type: Frequency range 2491.75 ±8.16 MHz
Signal acquisition sensitivity: -137 dBm
Transmitted signal types: Lf0, Lf1, to Lf2 inbound signals; Frequency range: 1610-1624 MHz
Material Download
Product Introduction Product Features Technical Parameters Application Fields Application Scenarios
Product Introduction
—

The HRG-100 Beidou Data Transmission Terminal is a data transmission device that supports Beidou-3 RDSS short message communication and GNSS positioning functionality. It integrates Beidou RDSS antenna, radio frequency, baseband, and main control units, enabling independent position reporting and Beidou short message communication capabilities.

Product Features
—
01
Capable of processing Beidou regional short message signals.
02
Built-in high-precision multi-star positioning module and low-noise amplifier to enhance reception sensitivity.
03
Supports sending up to 1000 Chinese characters per message (controlled by Beidou card level), with a minimum message transmission interval of 1 minute.
04
Supports low-power Bluetooth for parameter configuration.
05
Low-power design, suitable for solar-powered scenarios.
06
Built-in antenna for easy installation and immediate use.
07
Bracket-mounted with IP67 protection rating.

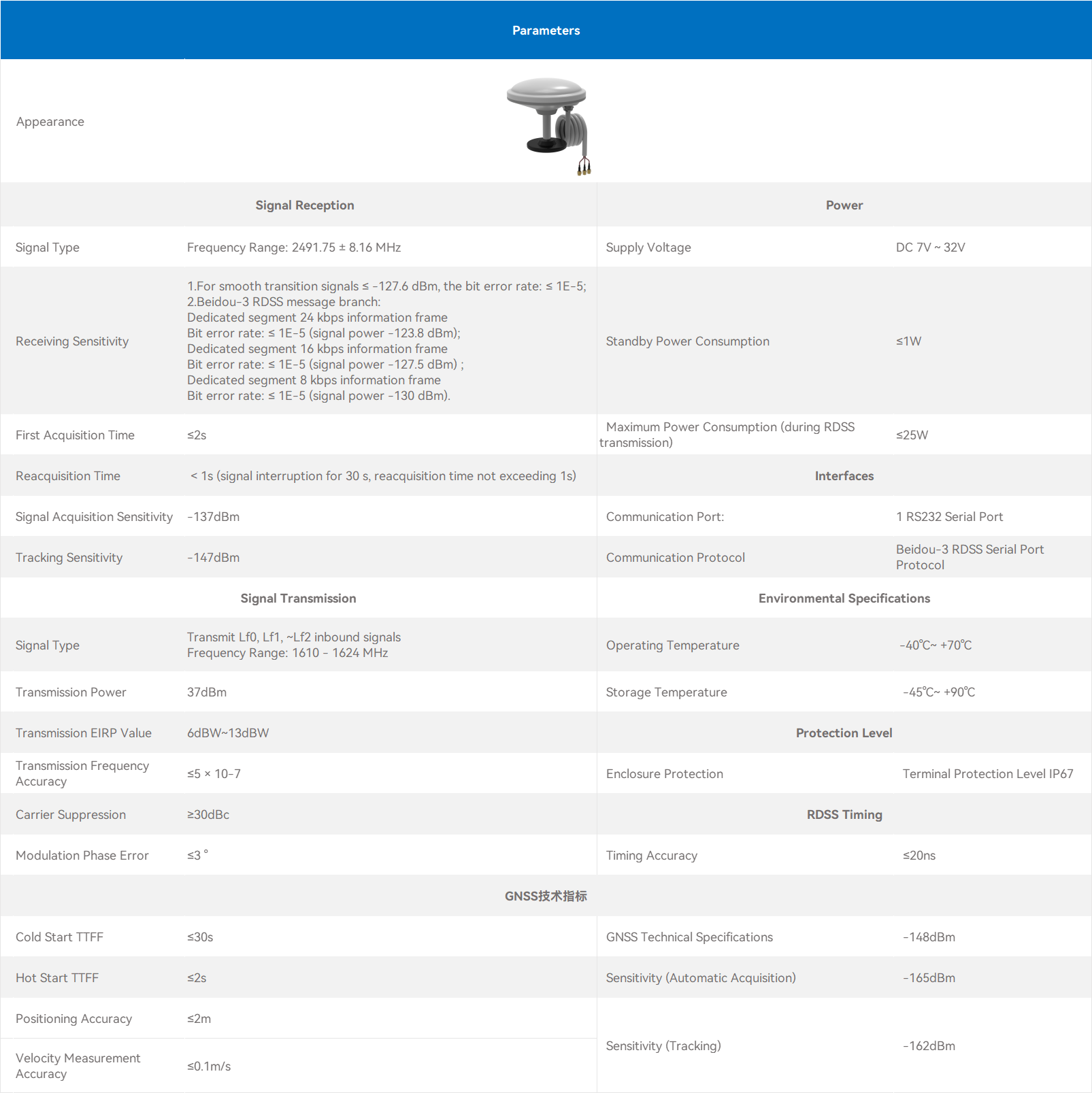

Technical Parameters
—

北斗

Application Fields
—
01
Hydrology, Water Conservancy
02
Oceanography, Forestry and Animal Husbandry, Firefighting, etc.

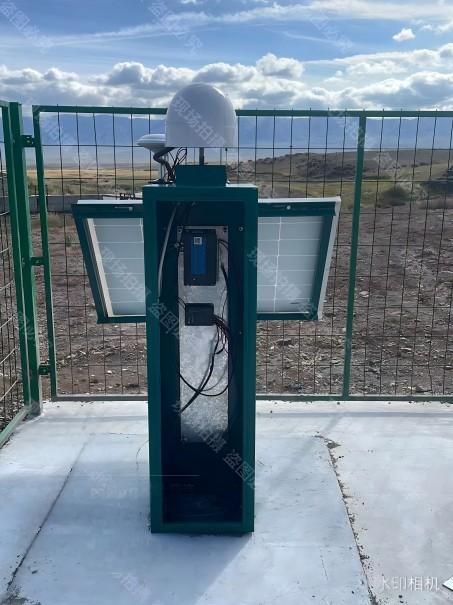

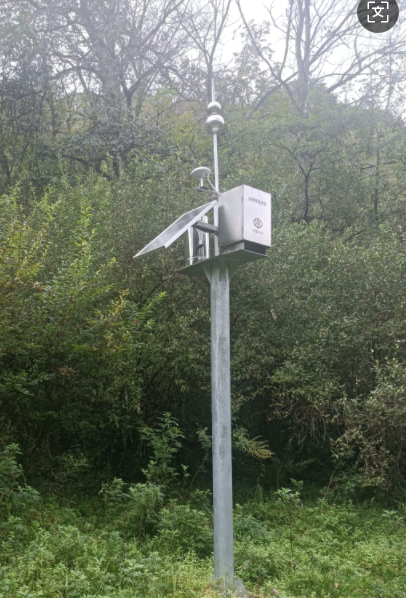

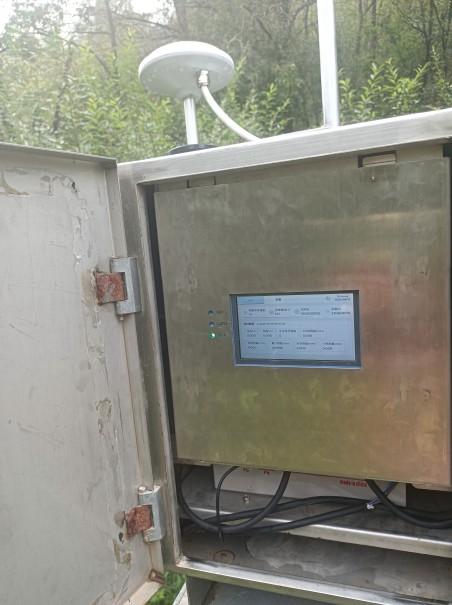

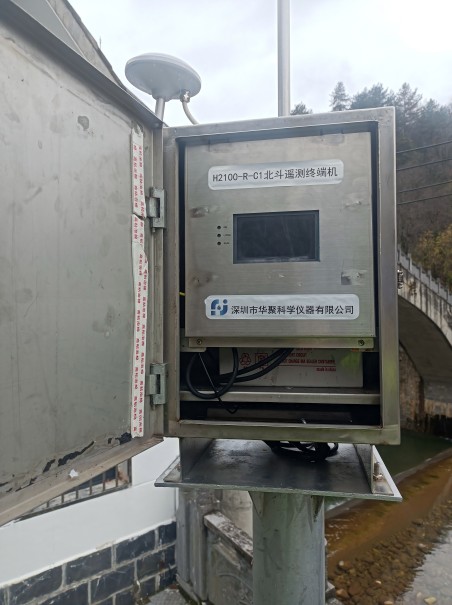

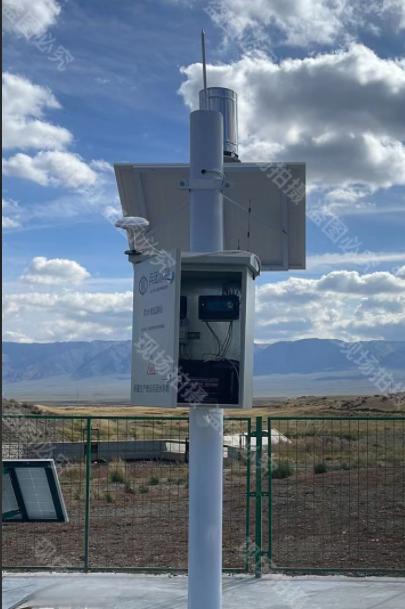

Application Scenarios
—
