HJ-UT-K Series
Ultrasonic Transit-Time Open Channel Flowmeter

The HJ-UT-K series frame-type flow measurement box is a high-performance ultrasonic time-difference open-channel flowmeter based on Huaju's HJ-UT platform.Adopting a frame-type and detachable design, this flowmeter can be disassembled for convenient transportation and assembled prior to installation, which minimizes installation workload. It is ideally suited for application scenarios requiring large flow measurement boxes with a size exceeding 1.6 meters, effectively solving the problems of difficult transportation and installation caused by the large volume and heavy weight of traditional large flow measurement boxes.

Dimensions (mm): Optional and customizable
Velocity measurement range (m/s): ±0.01 ~ ±5
Liquid level range (mm): 0–400 to 2400

Product Introduction Product Features Application Fields Application Scenarios

Product Introduction
—

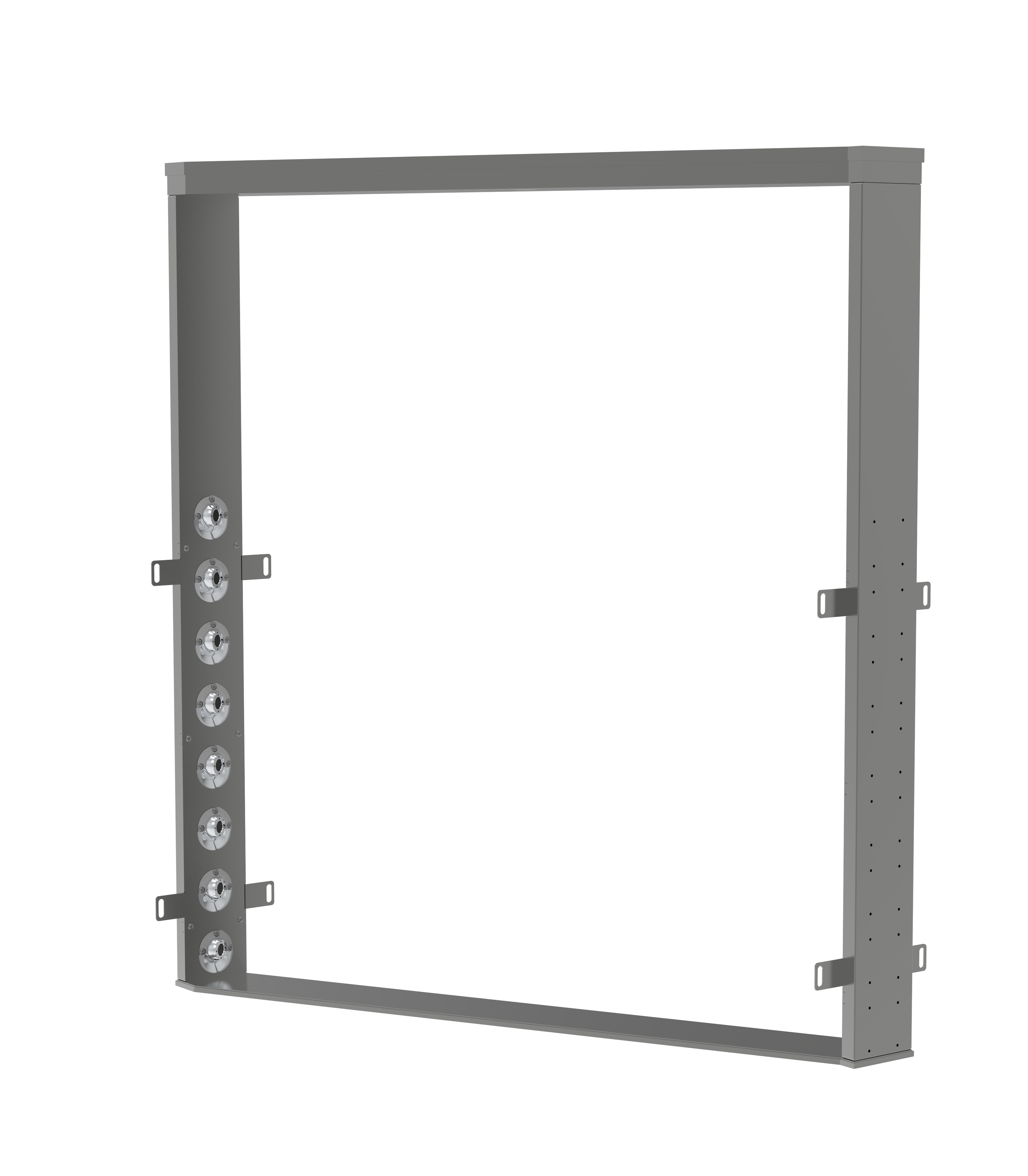

The HJ-UT-K Series Frame-type Flow Measurement Box is a high-performance ultrasonic time-difference open-channel flowmeter based on the Huaju HJ-UT platform.

Featuring a frame-type and detachable structure, this flowmeter can be disassembled for convenient transportation and assembled prior to installation, which minimizes the installation workload. It is particularly suitable for application scenarios requiring large flow measurement boxes with a size exceeding 1.6 meters, effectively overcoming the problems of difficult transportation and installation caused by the large volume and heavy weight of traditional large flow measurement boxes.

Product Features
—

Detachable structure for easy transportation and installation

Ideal for application scenarios requiring large flow measurement boxes over 1.6 meters;

Supports optional integration of Huaju GX-N series sediment thickness sensor modules, enabling sediment detection with an accuracy of ±2.5 mm.

Application Fields
—

Flow measurement and monitoring for open channels and sluices in water conservancy, agriculture, irrigation districts and other scenarios;

Flow measurement and monitoring for urban drainage systems.

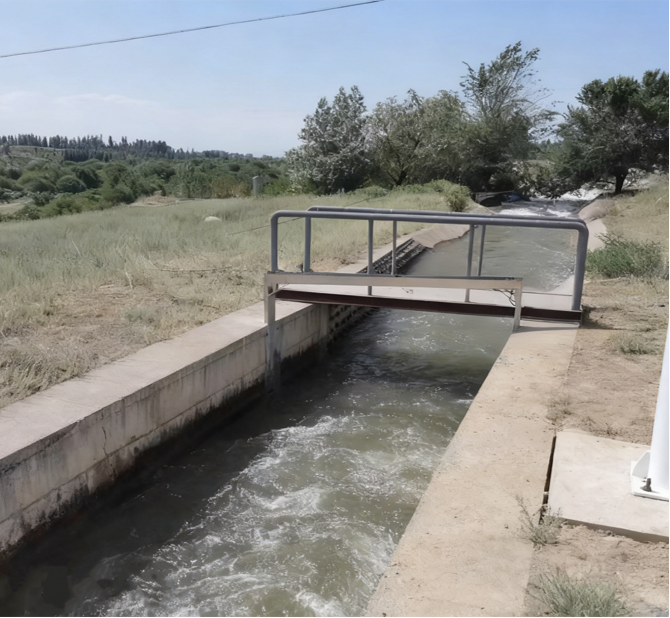

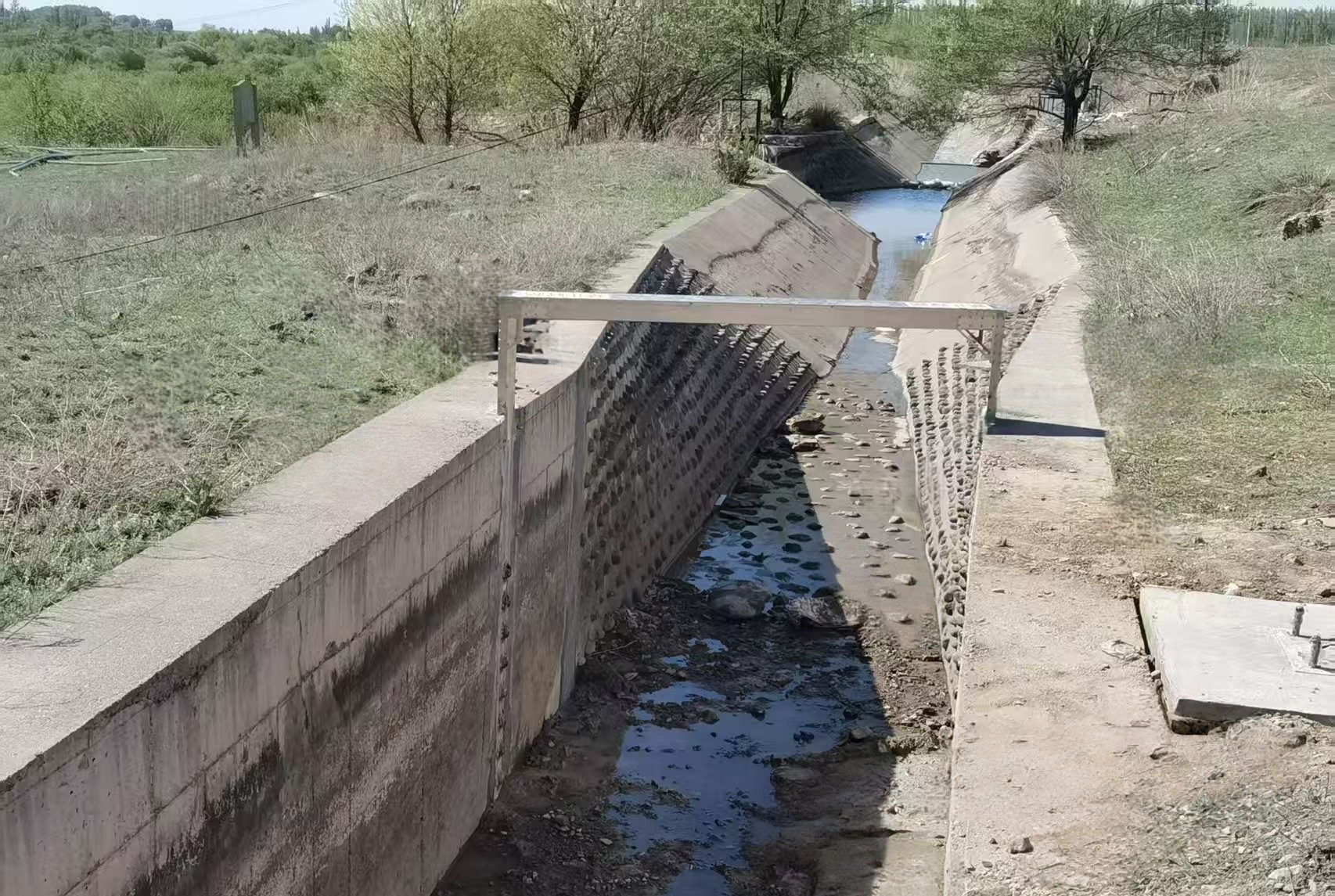

Application Scenarios
—
