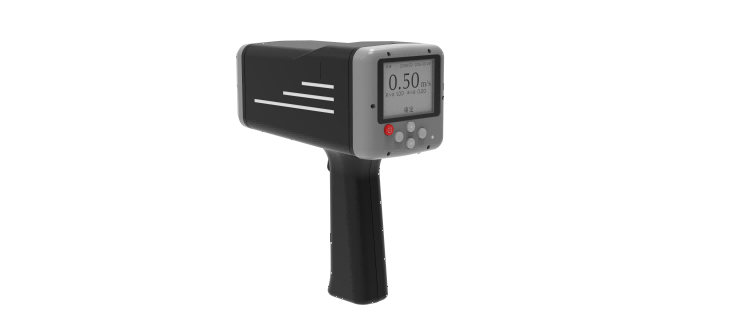

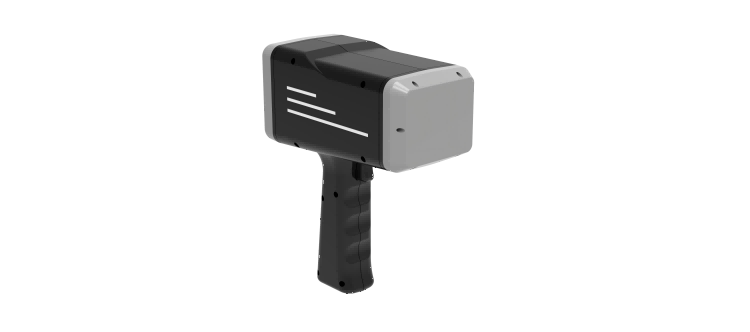

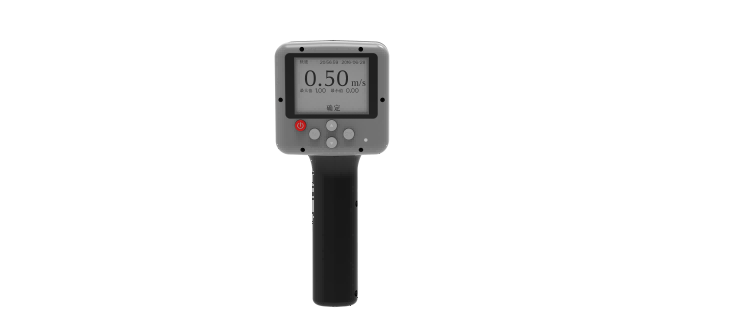

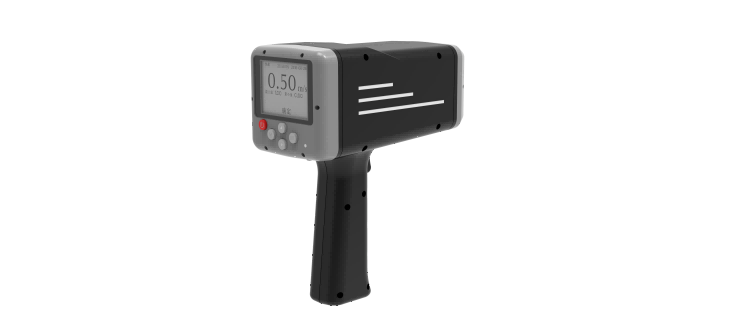

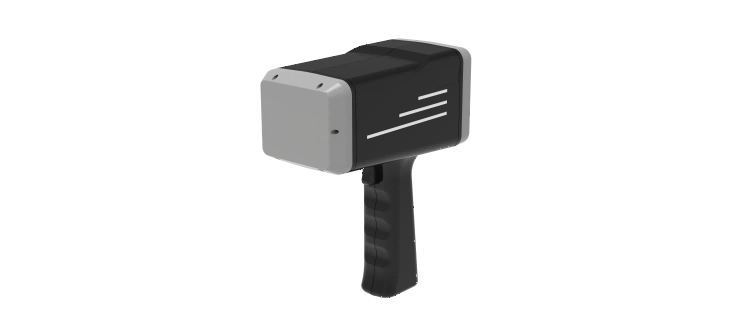

Handheld rader wave flow meter
RD-60 the handheld rader wave flow meter is a patented product of ShenZhen HuaJu Scientific Instruments Co.,Ltd. This instrument utilizes K-band radar to perform non-contact flow velocity measurements for rivers, sewage, mud, and marine environments.

Measurement Range:0.03~20m/s
Measurement Accuracy:±0.01m/s;±2%FS
Measurement Distance:100m
Material Download
Product Introduction

RD-60 the handheld radar velocity meter is a patented product of ShenZhen HuaJu Scientific Instruments Co.,Ltd. This instrument utilizes K-band radar to perform non-contact flow velocity measurements for rivers, sewage, mud, and marine environments. It features a compact size, handheld operation, battery-powered, and ease of use. It is resistant to corrosion from sewage, unaffected by silt interference, and can perform non-contact measurements within a range of 100 meters, ensuring the safety of the user. Equipped with a built-in angle sensor, it requires no setup and achieves automatic correction of horizontal and vertical angles as well as velocity measurement with a single button press, making it extremely convenient to use.

Product Features
01
Designed for single-person use, weighing less than 700g.
02
Equipped with a built-in rechargeable battery, supporting continuous operation for up to 15 hours.
03
Waterproof structure ensures reliable performance in harsh outdoor weather conditions.
04
Non-contact operation, unaffected by sediment or water corrosion.
05
Built-in angle sensor for automatic vertical and horizontal angle correction.
06
Includes wireless flow measurement software (optional) for estimating flow rate based on surface velocity at multiple measurement points.
07
Integrated low-power Bluetooth enables on-site parameter configuration and debugging via mobile app, eliminating the need for a computer connection.
08
Chinese interface with guided operation for ease of use; standalone device can store up to 2000 records for convenient management.
09
Housing made of ABS resin material, offering impact resistance, heat resistance, low-temperature tolerance, corrosion resistance, and electrical insulation, ensuring user safety during thunderstorms.
10
Multiple measurement modes: single measurement (100 seconds per measurement) or continuous measurement (up to 3000 seconds); standalone flow estimation mode for calculating flow rate in regular cross-section channels.

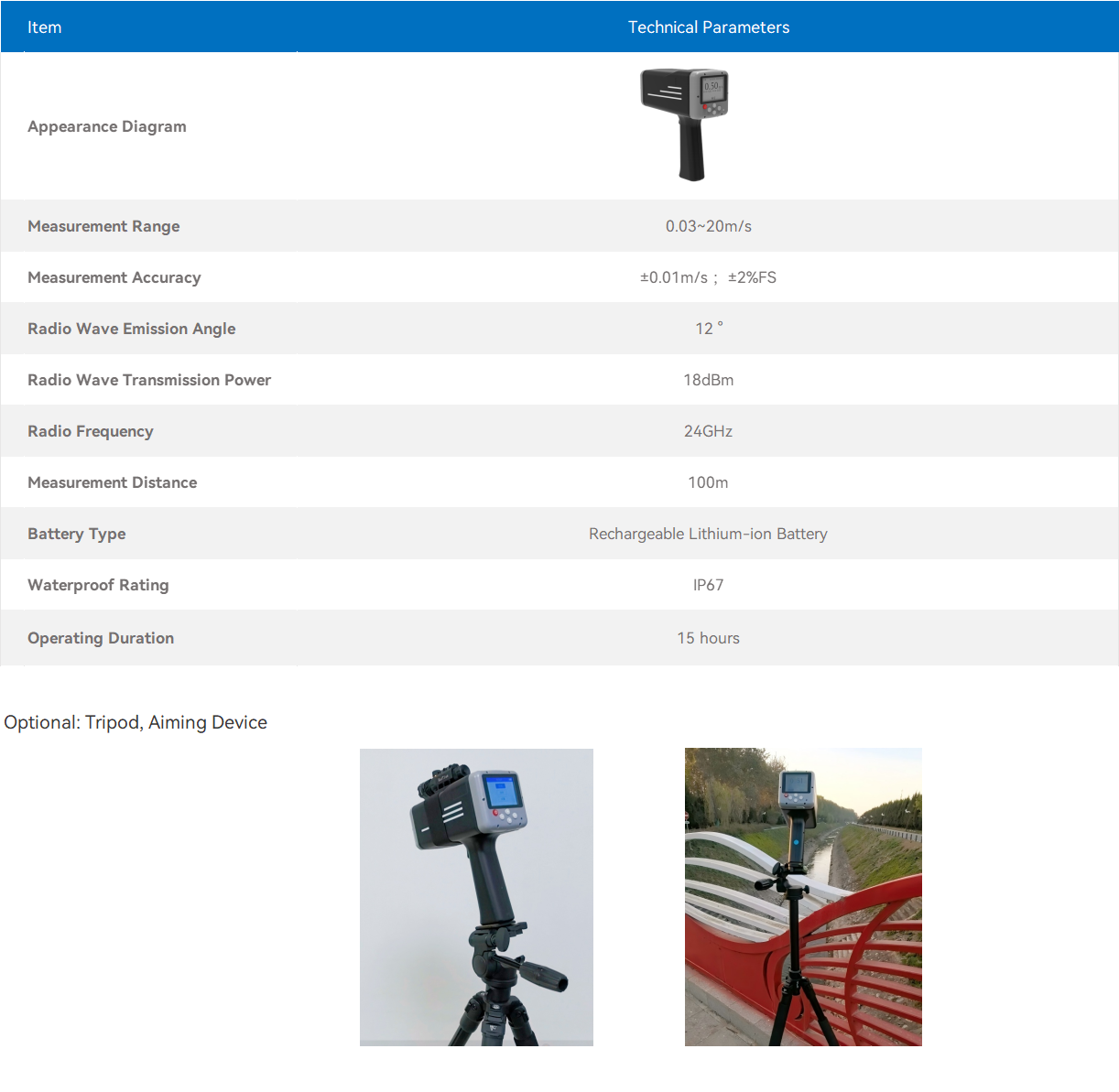

Technical Parameters

新RD-60

Application Fields
01
Channel Flow Velocity Monitoring, River Flow Velocity Monitoring, Wastewater Flow Velocity Monitoring, Marine Current Velocity Monitoring, Railway and Bridge Construction Flow Velocity Monitoring;
02
On-site Emergency Monitoring for Flood Prevention and Control, Wastewater Discharge Monitoring, and Other Scenarios Requiring Field Measurements.

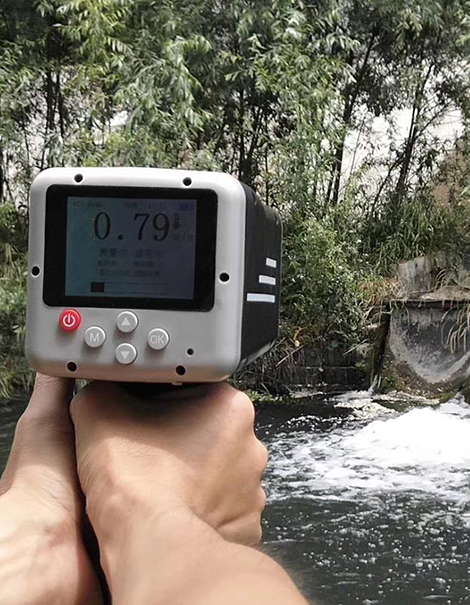

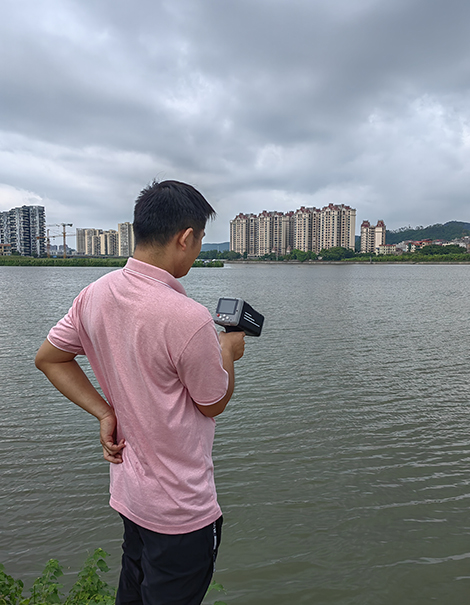

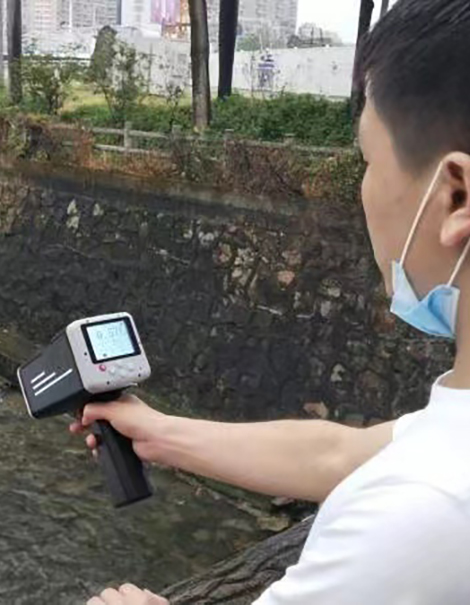

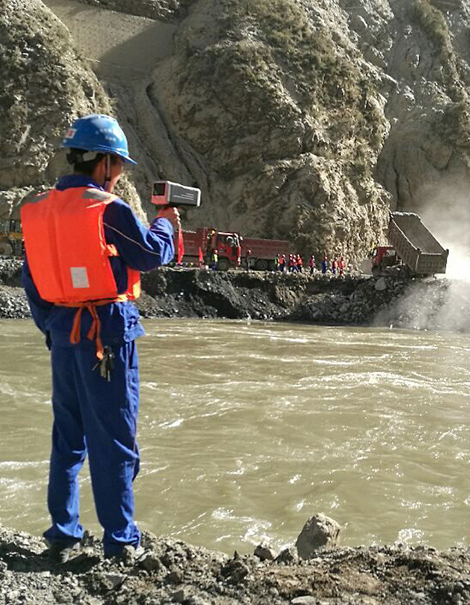

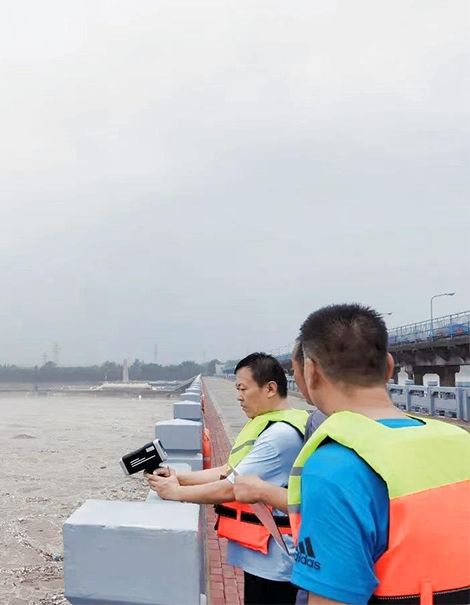

Application Scenarios
应用案例
微信图片_20240326195229
微信图片_20240326195317

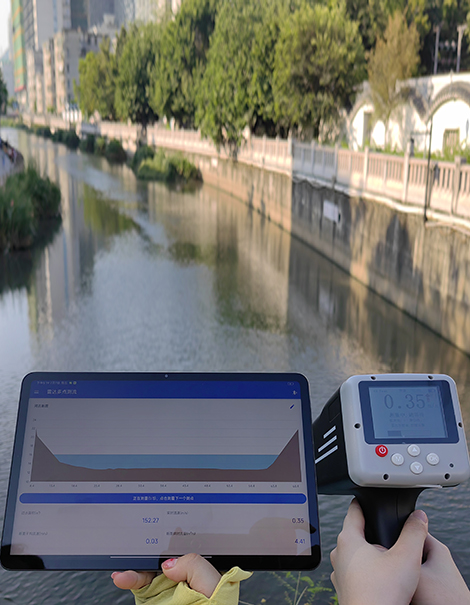

配合平板多点测流
培训现场
广东省韶关生态环境监测中心站2
1d6cce345680c70e842147f9ca3b4d5
