To simplify installation, streamline multi-device interface coordination and data protocol integration, enable remote debugging/maintenance/upgrades, reduce operational costs, and improve real-time monitoring, data management, and decision-making capabilities in water and rainfall monitoring station projects:

The Integrated Radar Water Level Meter (RD-300-CR) serves as the core data terminal for unified monitoring of water level, rainfall, and imagery. This system integrates solar power supply, RTU, and multi-parameter sensors (water level/flow relationship, rainfall, imagery, weather, water quality, etc.) into a compact, all-in-one monitoring station. It supports image-text overlay and simultaneous data-image transmission to multiple central stations.

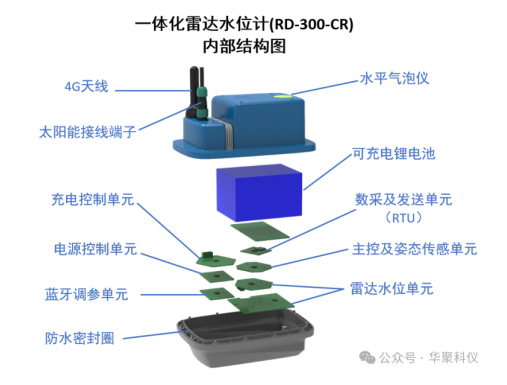

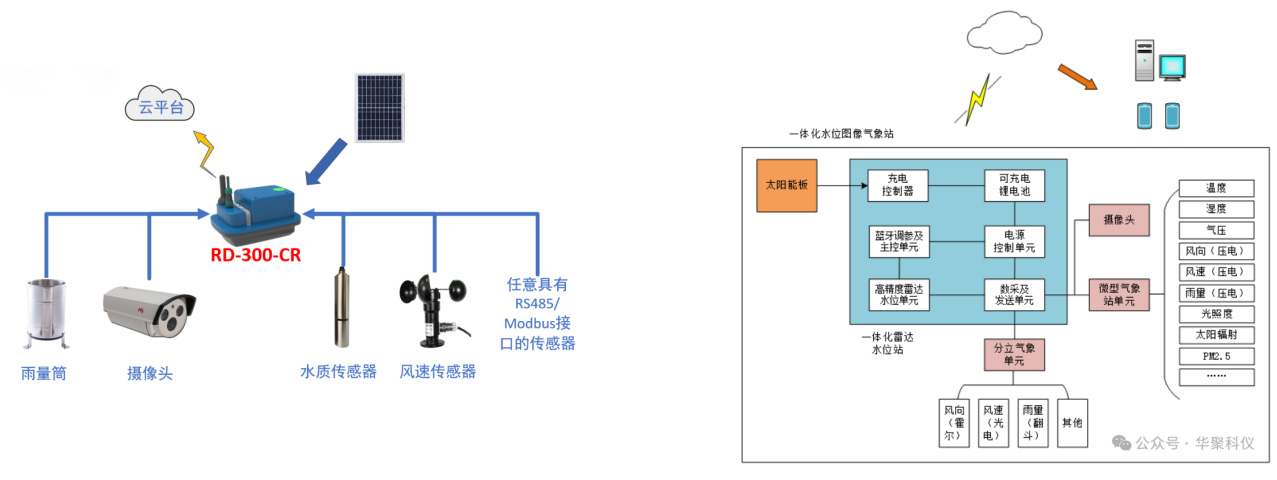

As the system’s central control unit, the RD-300-CR integrates power management (solar controller, rechargeable battery), data acquisition/transmission, and seamless expansion for external devices (cameras, rain gauges, water quality sensors, micro weather stations). It collects all parameters, combines them with water level data, and uploads monitoring data and images to cloud servers via protocols such as SL651, SZY206, HJ212, MQTT, or custom standards.

Remote Management Platform
A centralized cloud-based platform enables real-time device management, on-site visualization, data aggregation, and mobile APP access for grid-based, informatized management. The system is scalable to accommodate additional parameters or control functions as needed.

Solution Advantages

1.High Integration & Compact Design

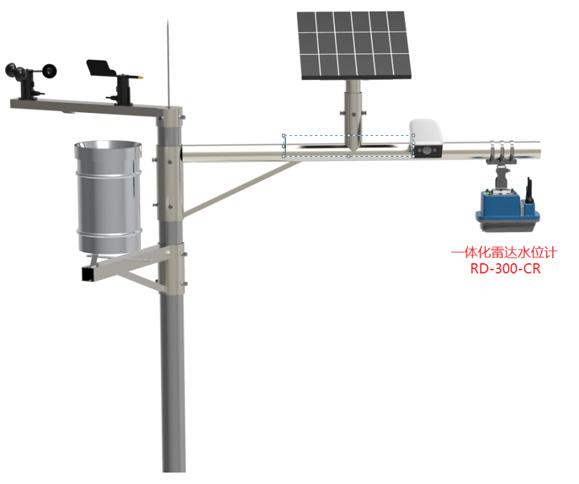

• All-in-one pole-mounted installation, lightweight and space-saving.
• Pre-configured sensors with plug-and-play functionality for rapid deployment.

2.Flexible Data & Image Transmission

• Supports timed, on-demand, or event-triggered data/image uploads.
• Text-over-image integration for contextualized monitoring.

3.Remote Accessibility

• Local Bluetooth debugging and remote maintenance/upgrades via mobile APP.
• Web-based platform for centralized data management, statistics, and system updates.

4.Robust Communication & Compliance

• Multi-channel connectivity (GPRS/2G/3G/4G/NB-IoT, LoRa).
• Simultaneous data distribution to ≥4 central stations with retransmission support.
• Compliant with SL651, SZY206, HJ212, MQTT, and custom protocols.

5.Field-Ready Reliability

• No equipment cabinet required; minimal on-site installation.
• Non-contact radar water level measurement (built-in stage-discharge relationship) with immunity to sediment and low maintenance.
• Reverse polarity protection, lightning protection, and full waterproofing for harsh environments.

• Automatic Water Level Collection: Detects 1.0 cm resolution changes with programmable sampling intervals and digital filtering.

• Scheduled Reporting: Transmits water level, timestamp, and voltage data at preset intervals.

• Real-Time & Batch Data Retrieval: Supports on-demand queries for instant or historical data.

• Local/Remote Display & Control: On-site LCD display and remote access via platform/APP.

• Adaptability: Operates reliably under extreme conditions (lightning, storms, power outages).

• Safety Compliance: Wind-resistant, lightning-proof, and tamper-resistant design.



• Power: Solar + lithium battery backup with energy-efficient design.
• Communication: Multi-protocol RTU for seamless integration.
• Environmental Rating: IP68 waterproof, -30°C to +70°C operation.
• Standards: Meets hydrological monitoring and industrial durability requirements.
