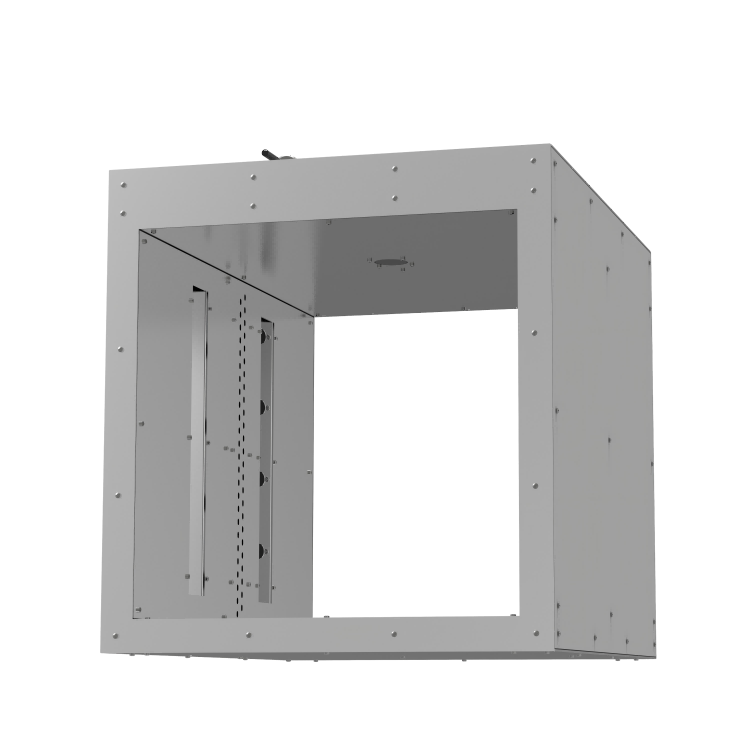

3-测流箱A款(尺寸)
1-测流箱A款(尺寸750)
2-测流箱A款(尺寸750)
3-测流箱A款(尺寸)
1-测流箱A款(尺寸750)
2-测流箱A款(尺寸750)

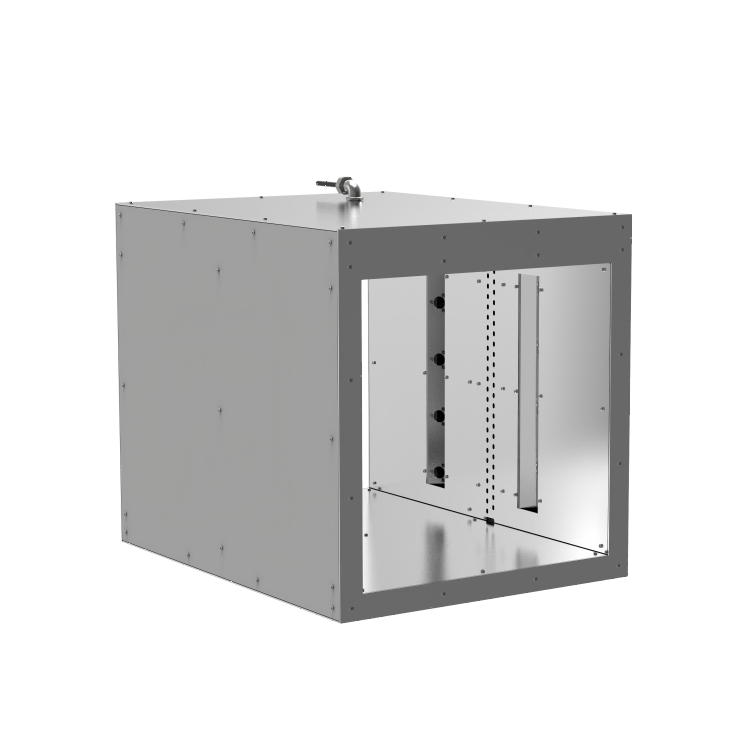

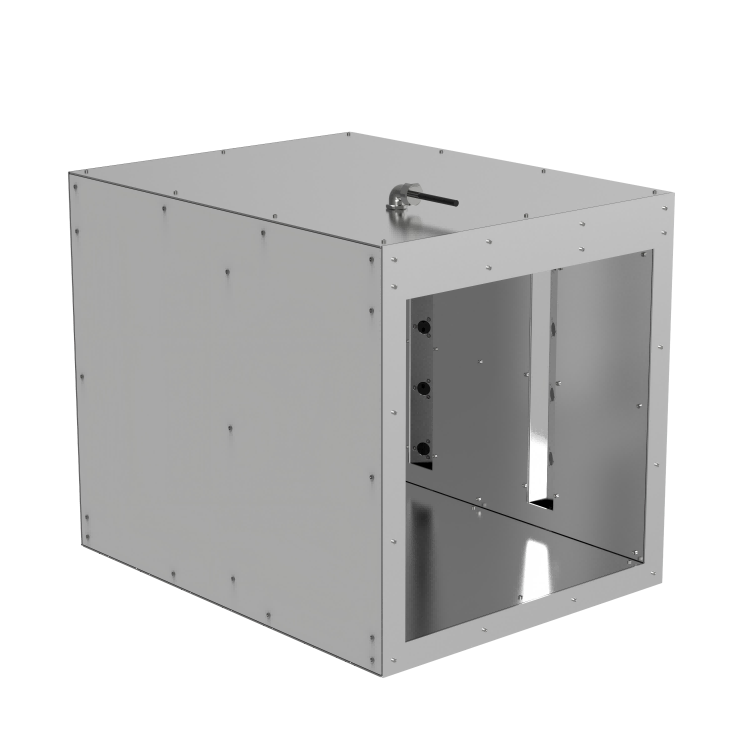

HJ-UT-A Series
Ultrasonic time-difference open channel flow meter
The HJ-UT-A Series Ultrasonic time-difference Open Channel Flow Meter is a high-performance ultrasonic flow meter independently designed and developed by ShenZhen HuaJu Scientific Instruments Co.,ltd. Based on the time-of-flight measurement principle and featuring a box-type structure, this flow meter is suitable for accurate flow measurement in water conservancy, irrigation districts, and open channels.

Dimensions(mm):Optional, customizable
Flow measurement range(m):±0.01 m/s ~ ±5m/s
Liquid level range(mm):0-400mm~1200mm
Material Download
Product Introduction Product Features Technical Parameters Installation Method Application Fields Application Scenarios
Product Introduction
—
The HJ-UT-A Series Ultrasonic time-difference Open Channel Flow Meter is a high-performance ultrasonic flow meter independently designed and developed by ShenZhen HuaJu Scientific Instruments Co.,ltd. Based on the time-of-flight measurement principle and featuring a box-type structure, this flow meter is suitable for accurate flow measurement in water conservancy, irrigation districts, and open channels.

The product includes an ultrasonic flow measurement unit, a radar liquid level unit, and an electronic water gauge, accurately measuring water flow by utilizing stratified velocity and liquid level data. The product can also be conveniently connected to devices such as RTUs, lithium batteries, and solar chargers, enabling the storage and real-time uploading of water level and flow data. The product boasts high measurement accuracy, exceptional reliability, and straightforward maintenance.
Product Features
—
01
Wide Measurement Range: Capable of measuring flow velocities from ±0.01 m/s to ±5 m/s.
02
Easy Device Maintenance: Supports remote status monitoring, device upgrades, and fault diagnosis.
03
Flow Guidance Design: Optional flow guide plate ensures smoother water flow and reduces debris accumulation.
04
High Stability: Integrated data processing algorithm ensures results are unaffected by water flow conditions or impurities.
05
Industrial-Grade Reliability: Key components use high-performance, high-reliability industrial-grade parts, ensuring a long service life.
06
Strong Expandability: Can be connected to an RTU, lithium battery, and solar charger for convenient power supply and real-time data upload.
07
High Measurement Accuracy: Low-noise measurement circuitry combined with advanced data algorithms and real-time temperature detection and compensation ensures full-range measurement accuracy meets standard requirements.

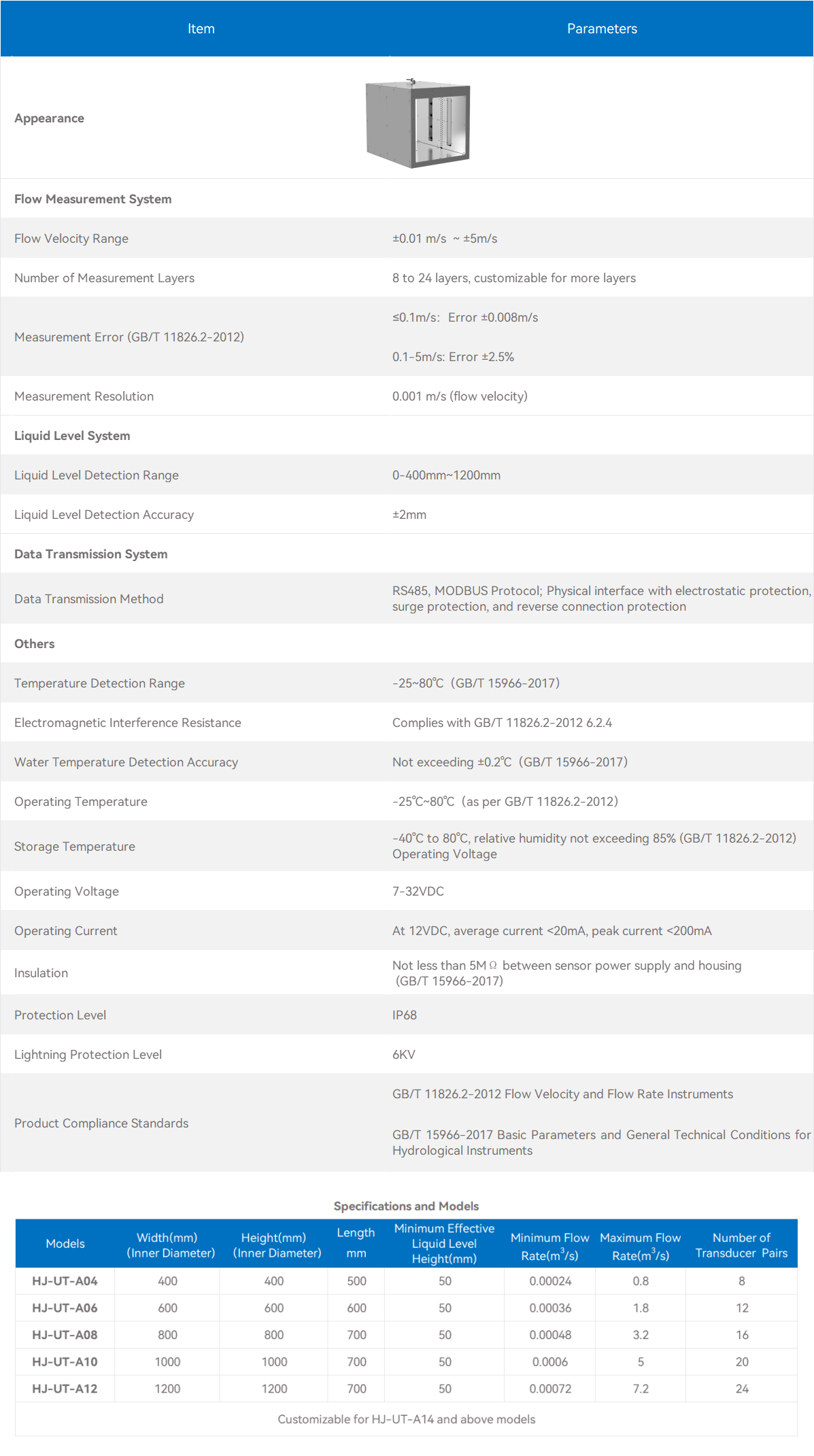

Technical Parameters
—

A型测箱

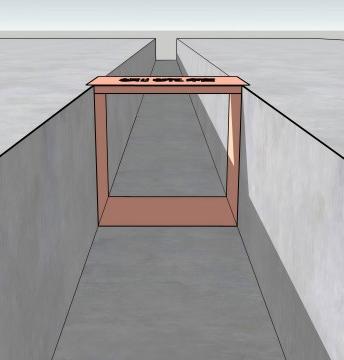

Installation Method
—
A系列安装渲染图2(尺寸)
Channel Installation
Application Fields
—
01
Flow measurement and monitoring in open channels, sluice gates, and other structures for water conservancy, agriculture, and irrigation districts;
02
Flow measurement and monitoring for urban drainage systems.

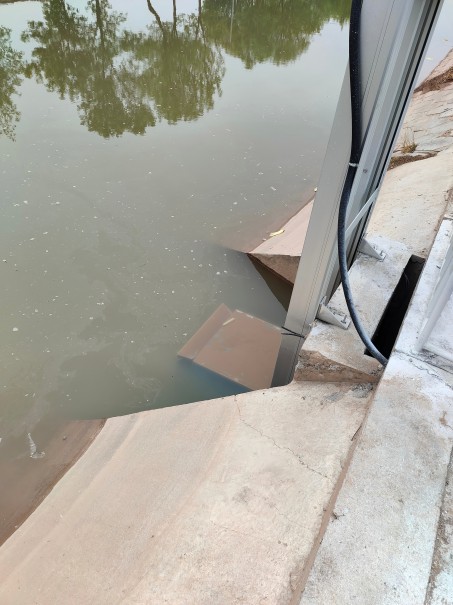

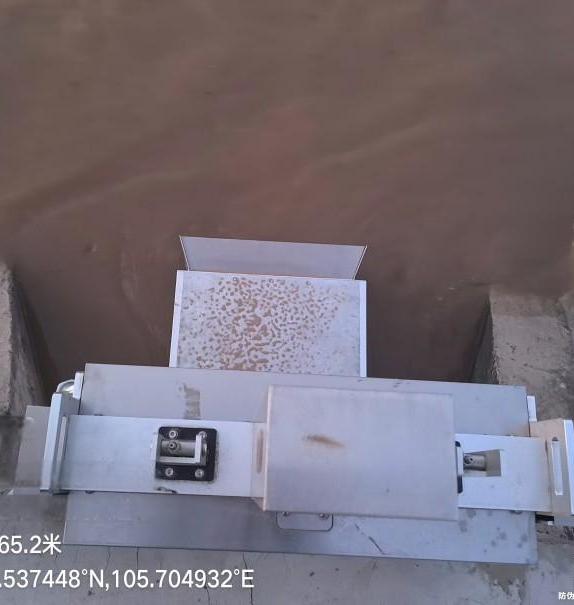

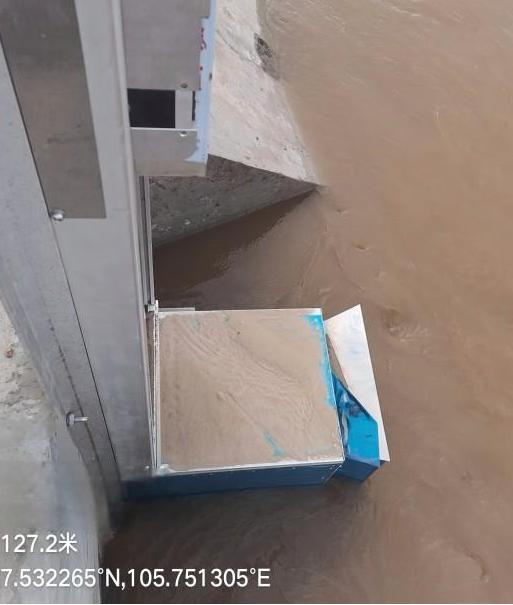

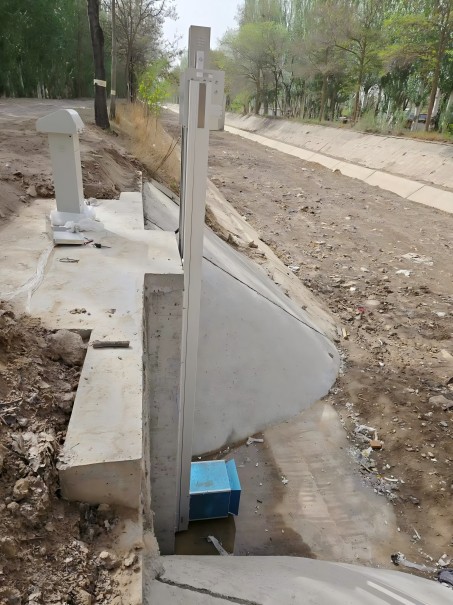

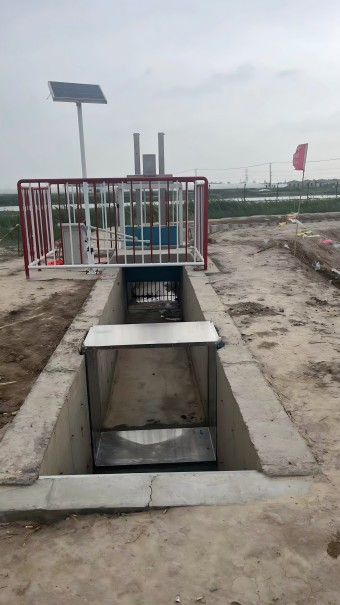

Application Scenarios
—
现场3(尺寸)
现场2(尺寸)
现场1(尺寸)
微信图片_20241120104440(尺寸)
微信图片_20241120104407(尺寸)
